Specifying the wrong EPDM rubber granules size is one of the most common—and costly—mistakes buyers make when sourcing rubber surfacing materials. The particle size you choose directly affects surface texture, shock absorption performance, PU binder consumption, and ultimately the installed cost per square meter. This guide cuts through the confusion and gives you a clear, application-specific framework for getting the spec right the first time.
It's tempting to treat granule size as a secondary detail you settle after price negotiations. Don't. Here's why it deserves priority:
Surface texture and slip resistance are directly controlled by particle size. Finer granules (0.5–1.5mm) produce a smooth, dense surface with high traction—ideal for indoor gym flooring or children's play zones where bare skin contact is likely. Coarser granules (3–5mm) create an open, porous matrix that drains rainwater quickly and cushions hard impacts on outdoor athletic tracks.
PU binder ratio scales with surface area. Finer particles have a far greater total surface area per kilogram, meaning they absorb more polyurethane binder during mixing. A 0.5–1.5mm EPDM mix may require a binder-to-granule ratio of 18–22% by weight, while a 2–4mm mix typically runs 14–17%. Underestimating this inflates your material cost and causes delamination failures within 12–24 months.
Compaction and layer thickness also shift by size. Thicker granules need a deeper wear layer to achieve a uniform, void-free finish. If your spec sheet says 13mm total system depth but you're using 3–5mm granules, you are not getting the safety fall height performance the drawing implies.
The table below covers the four most common commercial grades, their primary applications, and the key performance trade-offs. These are the grades available from standard production runs; custom sieve ranges can be produced for orders typically above 5 metric tons.
| Granule Size | Primary Application | Surface Texture | Recommended PU Binder Ratio | Notes |
|---|---|---|---|---|
| 0.5 – 1.5 mm | Indoor gym, fitness studio, children's indoor play | Very smooth, dense | 18–22% | Highest binder cost; excellent UV color retention |
| 1 – 3 mm | Playground flooring, school yard, multipurpose court | Medium texture | 16–19% | Most versatile grade; good impact attenuation |
| 2 – 4 mm | Running track surface (top wear layer), athletics track | Slightly open | 14–17% | Standard for IAAF-compliant track systems |
| 3 – 5 mm | Outdoor landscape path, pool deck, heavy-use park trails | Open, porous | 13–16% | Best drainage; lower binder cost per m² |
For a standard 400-meter school or club-level running track, the typical system spec is a 10–12mm SBR rubber base layer topped with a 3–5mm EPDM wear layer, with 1–3mm EPDM used for the top coat when a finer finish is specified. The 2–4mm grade is the industry workhorse here. It delivers the right balance of grip, drainage, and spike penetration resistance for spiked athletic footwear.
A complete poured-in-place system typically follows this installation sequence:
Playground surfacing is driven by critical fall height (CFH) requirements. EN 1177 and ASTM F1292 both require that the impact attenuation at the installed depth must protect against head injury from the maximum equipment fall height. For most school playground equipment up to 2.0 meters, a total system depth of 40–50mm using 1–3mm EPDM granules will meet this threshold — but always verify with a certified drop-test report from your supplier before signing off on a specification.
The 1–3mm grade is preferred for playground flooring because the denser matrix resists the gouging and displacement caused by children running and pivoting in hard-soled shoes. It also provides a cleaner surface for maintenance — dirt and debris sit on top rather than migrating into open voids.

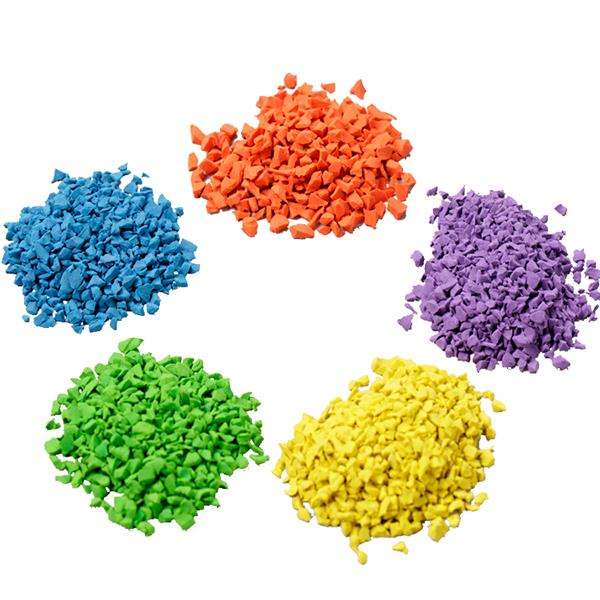

Coarser 3–5mm granules are the right call for pool surrounds and landscape walking paths. The open structure drains standing water rapidly, reducing slip risk on wet surfaces. Binder consumption is lower, which keeps installed cost competitive. Color options — terracotta, beige, grey, green, and standard red or blue — are all achievable in this grade.

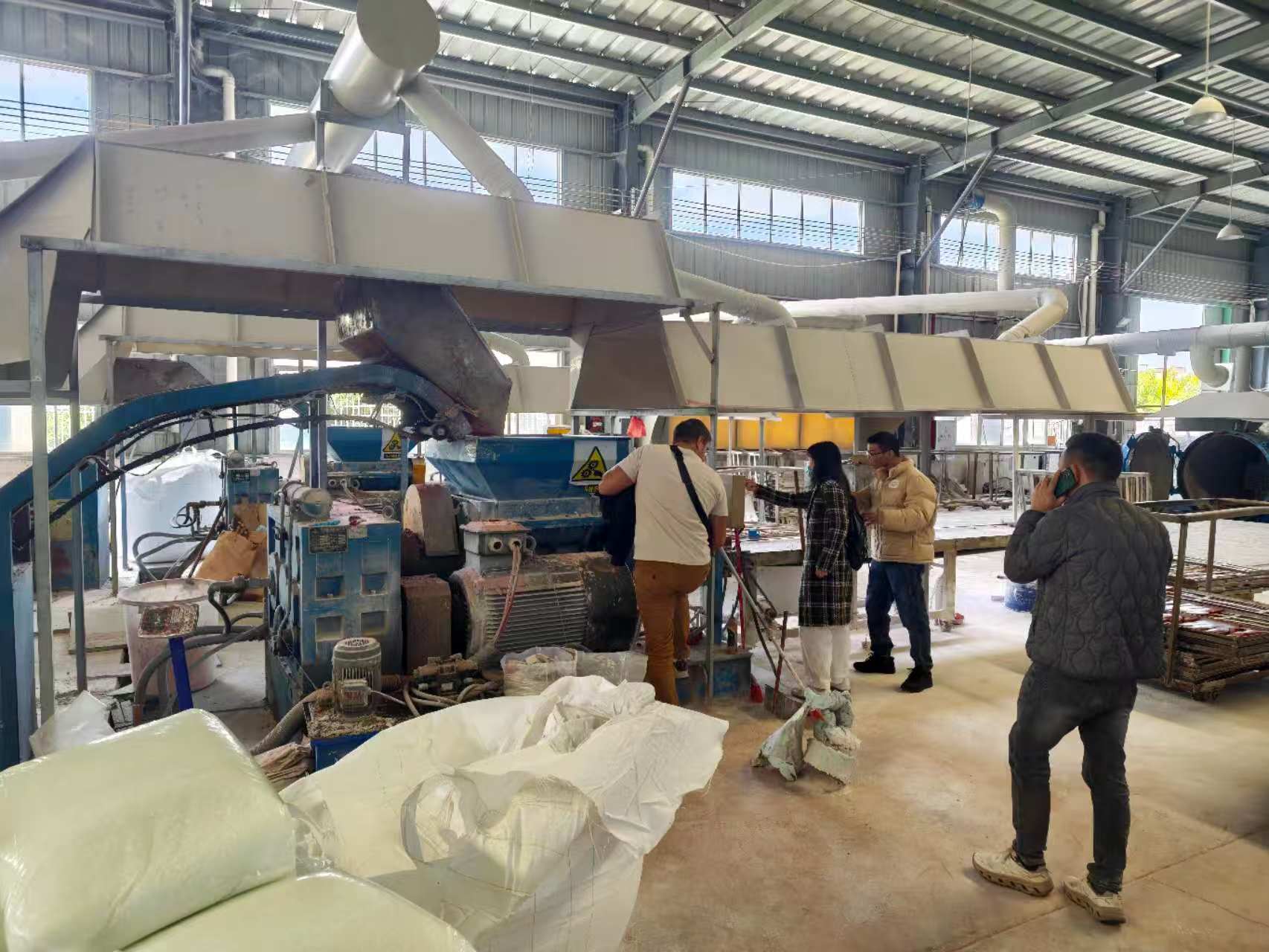

EPDM rubber granules are typically packed in 25 kg woven PP bags with moisture-resistant inner liner. A standard 20-foot general purpose container (20' GP) holds approximately 20 metric tons (800 bags), which covers roughly 3,000–4,500 m² of EPDM wear layer depending on application thickness and binder ratio.
Shipments from the manufacturing base in Guangzhou, China (Port of Dispatch: Guangzhou) typically reach Southeast Asian ports in 5–10 days, Middle Eastern ports in 15–22 days, and European ports in 25–35 days depending on routing.
Minimum order quantities for standard stock colors and sizes generally start at 1 metric ton (40 bags) for sample or small project orders, with full container pricing (20-ton FCL) available at significantly reduced per-kilogram rates.
Q1: Can I mix two granule sizes in the same EPDM top layer to reduce cost?
Blending a coarser and finer grade is technically possible but not recommended for performance-critical surfaces like running tracks. Mixed gradations create inconsistent binder distribution, which leads to weak zones and uneven surface hardness. If cost is the constraint, the better approach is to reduce the EPDM layer thickness and increase the SBR base layer depth — SBR granules are significantly cheaper per kilogram while still contributing to overall system impact attenuation.
Q2: What granule size gives the best UV color stability over 5+ years?
Color longevity is primarily a function of pigment quality and EPDM compound formulation rather than particle size. That said, finer grades (0.5–1.5mm and 1–3mm) tend to show more consistent color because the denser surface matrix exposes less binder to direct UV radiation. Using UV-stabilized inorganic pigments — rather than organic dyes — is the single most important factor for retaining color over a 5–10 year service life in direct sunlight.
Q3: How much EPDM granule material do I need for a 500 m² school playground at 40mm system depth?
For a 500 m² playground using 1–3mm EPDM at a 5mm wear layer over a 35mm SBR base: the EPDM top layer at 5mm depth and approximately 18% binder ratio requires roughly 0.9–1.1 kg of EPDM granules per m², so approximately 450–550 kg total for 500 m². Always add 5–8% waste factor for edge trimming and mixing losses. Your supplier should provide a detailed material takeoff calculation based on your confirmed system design — request this in writing before placing a purchase order.
